All copper oxygen lift check valve

Your location：Home >> Guanhuan Valve >> Valve center >> Oxygen valve series

All copper oxygen lift check valve

Product model: HY41W

Nominal diameter: DN15-600mm

Nominal pressure: PN1.6-4.0MPa

Body material: silicon brass, stainless steel

Applicable temperature: -20℃-200℃

Applicable medium: oxygen

Packing material: PTFE

Design standard: JB/T10530

Flange size: JB/T79, JB/T82

Structure length: GB/T12221

Inspection standard: JB/T9092

Contact us

Product overview

The all-copper oxygen lift check valve is made of silicon brass or stainless steel with excellent material, which has the advantages of high mechanical strength, wear resistance and good safety. Used on the oxygen pipe, with explosion-proof and flame-retardant performance, eliminating the unsafe factors on the oxygen pipe. It is suitable for oxygen pipe network and other systems as a check valve, which plays the role of stopping the flow and stopping the return, such as oxygen rich system to prevent the cold air backflow, and prevent nitrogen and oxygen in the slag splash furnace.

Performance characteristics
1, the valve is generally suitable for clean media, not suitable for media containing solid particles and large viscosity.
2, the valve bushing is made of special materials with good wear resistance and small friction coefficient, flexible and reliable action, and excellent sealing performance.
3. The valve has novel structure, small size, light weight, small fluid resistance, stable opening and closing, long service life, oil pressure and slow closing are not affected by the medium, and has good energy-saving effect.
4, the valve can be installed at the pump outlet, can avoid the production of water hammer, water percussion sound and destructive impact, to prevent countercurrent and protect the purpose of equipment.

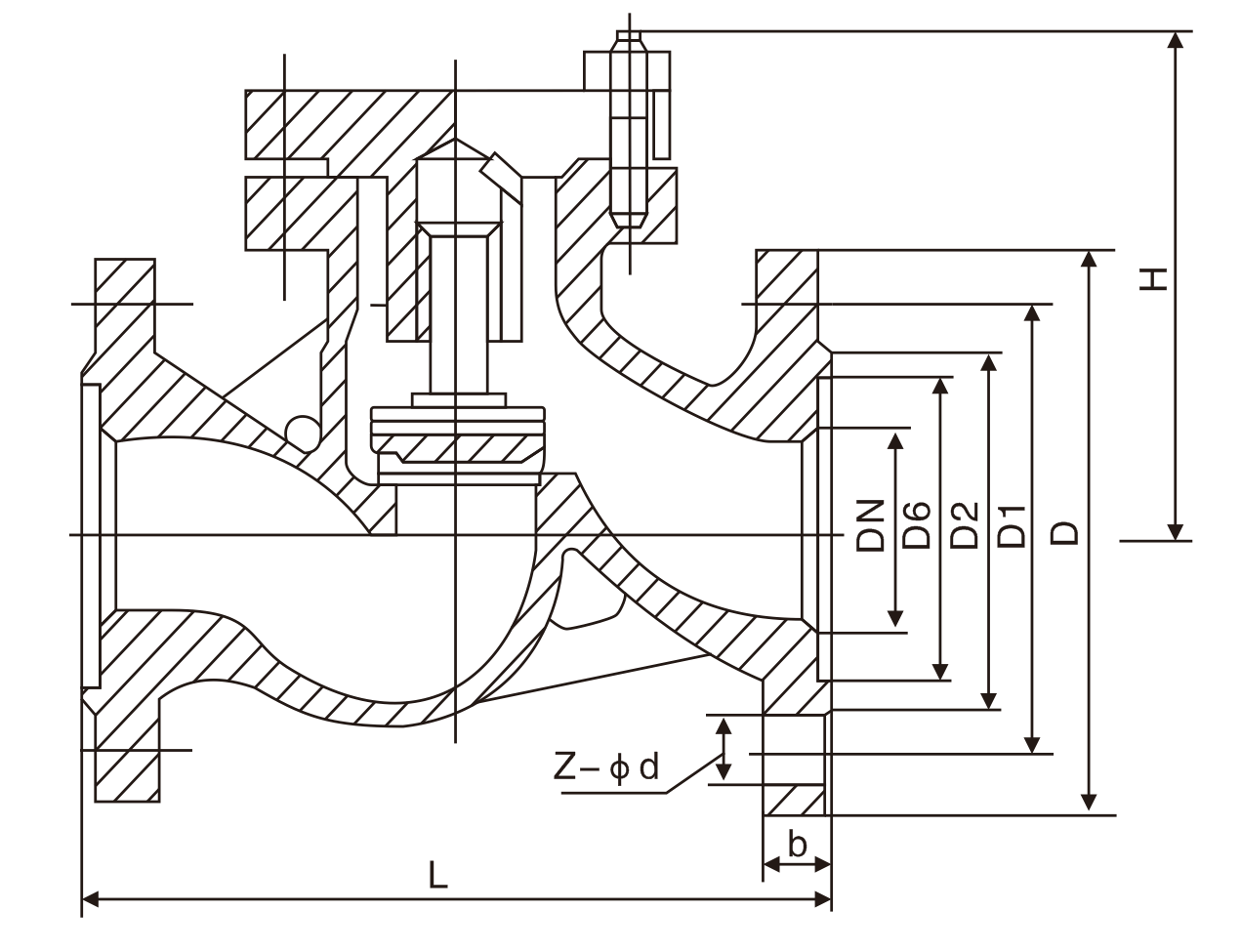

Main contour connection dimensions

Model	Nominal diameter DN(㎜)	size㎜
Model	Nominal diameter DN(㎜)	L	D	D1	D2	Z-фd	b	H
HY41W-16T	15	130	95	65	45	4-ф14	14	77
	20	150	105	75	55	4-ф14	14	77
	25	160	115	85	65	4-ф14	16	80
	32	180	135	100	78	4-ф18	16	85
	40	200	145	110	85	4-ф18	16	95
	50	230	160	125	100	4-ф18	16	105
	65	290	180	145	120	4-ф18	18	120
	80	310	195	160	135	8-ф18	20	130
	100	350	215	180	155	8-ф18	20	140
	125	400	245	210	185	8-ф18	22	155
	150	480	280	240	210	8-ф23	24	180
	200	600	335	295	265	12-ф23	26	215
HY41W-25T	15	130	95	65	45	4-ф14	16	77
	20	150	105	75	55	4-ф14	16	77
	25	160	115	85	65	4-ф14	16	80
	32	180	135	100	78	4-ф18	18	85
	40	200	145	110	85	4-ф18	18	95
	50	230	160	125	100	4-ф18	20	105
	65	290	180	145	120	8-ф18	22	120
	80	310	195	160	135	8-ф18	22	130
	100	350	230	190	160	8-ф23	24	140
	125	400	270	220	188	8-ф25	28	155
	150	480	300	250	218	8-ф25	30	180
	200	600	360	310	278	12-ф30	34	215
